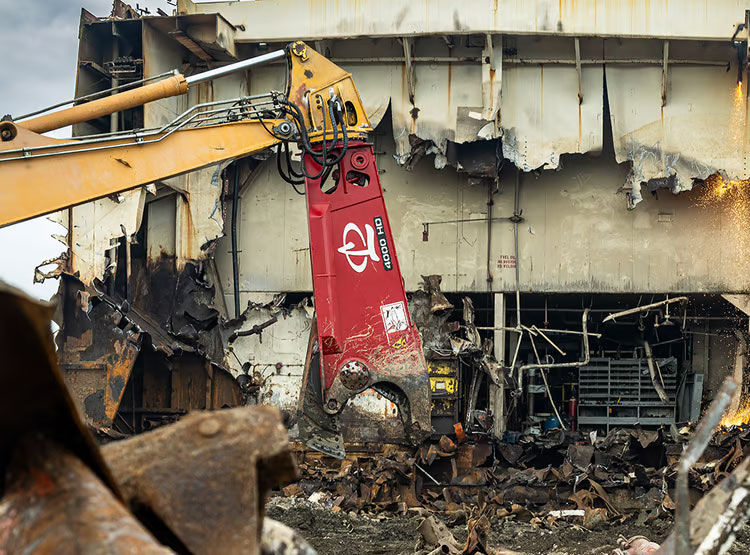

Epiroc - LaBounty MSD Destroyer Series Shears in action

Extreme-Duty Scrap Shears for the Toughest Applications


Product Overview

MSD Destroyer Series Shears

2500R | 3000R | 4000R | 4500R

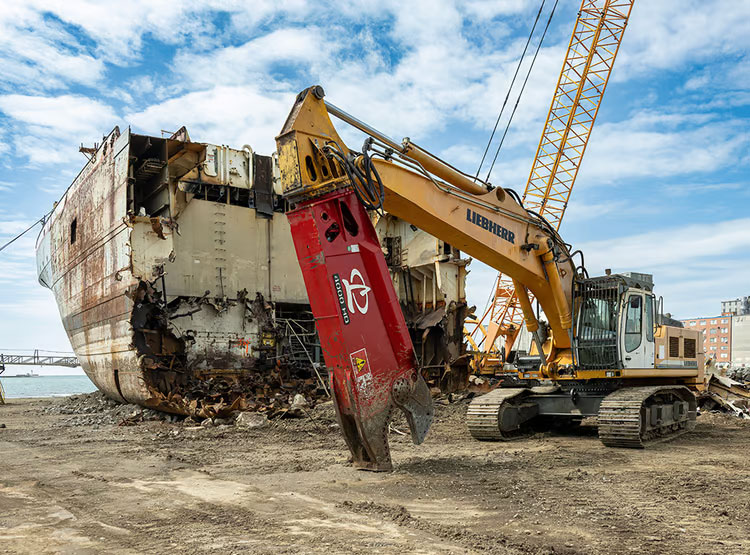

Built Tough for Demolition & Shipbreaking



LaBounty MSD Destroyer Series of Extreme duty mobile scrap shears are engineered to ensure uninterrupted performance in your large and extreme-duty demolition projects for industrial and shipbreaking applications in the toughest conditions. Crafted to surpass the industry’s most rigorous demands, the MSD Destroyer HD and XHD are built for a wide range of requirements for your demolition projects. These attachments offer the unyielding dependability of the MSD Legend Series with additional integrated reinforcement to tackle the harshest jobs.



Built Tough for Demolition & Shipbreaking


Features & Benefits

MSD Destroyer Series Shears


2x thickness in stick tubes for extreme-duty use cases

Based on reliable Legend shear design

Legend blade incorporated

Integrated reinforcement with thicker plates for more resistance to denting and optimized for stress flow

No weld on reinforcement plates for added strength and durability

More structural material in upper jaw for enhanced strength

Pivot and slide puck wrap reduces wear in high-impact areas

Maximum protection in vital areas means less maintenance in harsh environments and more uptime


DESTROYER HD DESTROYER XHD
Shipbreaking All the reinforcements in the HD are in the XHD, as well as an upgraded rotation group for extreme-duty uses.
Railcar recycling Capable of handling 50% more excavator forces than Destroyer HD
Industrial plant demolition

Improved handling of heavy material with additional rotation torque



Large infrastructure decommissioning and more Harsh demolition with larger excavators Custom/large demolition excavators


Applications


Heavy plant decommissioning   Steel bridge demolition   Refinery decommissioning   Foundry decommissioning

Offshore decommissioning   Ship dismantling


MSD Destroyer Series Technical Specifications

Model MSD 2500R HD  MSD 2500R XHD MSD 3000R HD MSD 4000R HD  MSD 4000R XHD  MSD 4500R HD MSD 4500R XHD MSD 7500R HD            MSD 7500R XHD MSD 9500R HD
Weight (lbs) 16,100 16,400 18,500 21700 24100 23300 25700 33200 37800 48700
Weight (kg) 7,300 7,400 8,400 9900 10900 10600 11700 15100 17200 22100
Jaw Opening (in) 31 31 34 38 38 39 39 43 43 48
Jaw Opening (mm) 790 790 870 970 970 990 990 1090 1090 1210
Jaw Depth (in) 33 33 38 43 43 43 43 44 44 50
Jaw Depth (mm) 840 840 970 1090 1090 1090 1090 1120 1120 1280
Reach (ft) 12.7 11.9 13.1 14.8 14.8 14.2 14.2 15.4 15.7 18.4
Reach (m) 3.9 3.6 4 4.5 4.5 4.3 4.3 4.7 4.8 5.6
Min Excavator Weight - 2nd Member (lbs) 79,000 81,000 99,000 110000 121000 110000 132000 160000 200000 240000
Min Excavator Weight - 2nd Member (mTons) 36 37 45 50 55 50 60 73 91 109
Min Excavator Weight - 3rd Member (lbs) 119,000 143,000 165,000 180000 251000 187000 264000 Consult Factory Consult Factory Consult Factory
Min Excavator Weight - 3rd Member (mTons) 54 65 75 82 114 85 120 Consult Factory
Consult Factory Consult Factory

* Weight includes standard excavator mounting bracket. Attachment weight may vary depending on mounting configuration as well as options.

** Reach is measured from the attachment mounting pivot (boom or stick) forward to the end of the jaw.

*** Excavator weight range is a guide only. 2nd member configurations at or near min/max excavator weight and all 3rd member configurations must be preapproved by LaBounty. Quick couplers, short swing machines, long arms all impact carrier size recommendation.

LaBounty reserves the right to improve, update, or change the product specifications, appearance, or functional attributes without notice.
